Event-driven architecture

An event-driven architecture diagram shows services that communicate by publishing events rather than calling each other. Here an orders service and an accounts service each write events to an outbox table, relays publish them to topics on an event broker, and three independent consumers read them: a shipping service, a notification service and an archive loader. Each consumer keeps its own data, and the archive can replay events back into a topic after a fix.

Engineers draw this to show which services depend on which events, and to explain the patterns that stop events being lost or processed twice. The outbox pattern writes the database change and the event in the same transaction, so an event is never published for a change that did not happen, and a change is never made without its event. Brokers usually deliver at least once, so consumers such as the shipping service check the event ID and ignore duplicates, which is also what makes replaying from the archive safe.

Open in editor

Mermaid source

---
title: Event-driven architecture
---
flowchart LR
  subgraph producers [Producers]
    orders[Orders service]
    ordersDb[(Orders DB with outbox)]
    ordersRelay[Outbox relay]
    accounts[Accounts service]
    accountsDb[(Accounts DB with outbox)]
    accountsRelay[Outbox relay]
  end
  orders -->|row and event in one transaction| ordersDb
  ordersDb --> ordersRelay
  accounts -->|row and event in one transaction| accountsDb
  accountsDb --> accountsRelay
  subgraph broker [Event broker]
    orderTopic[[orders topic]]
    accountTopic[[accounts topic]]
  end
  ordersRelay -->|OrderPlaced| orderTopic
  accountsRelay -->|CustomerRegistered| accountTopic
  subgraph consumers [Consumers]
    shipping[Shipping service]
    seen{Event ID already processed?}
    skip[Ignore the duplicate]
    shippingDb[(Shipping DB)]
    notify[Notification service]
    notifyDb[(Notification log)]
    archiver[Archive loader]
    archive[(Event archive)]
  end
  orderTopic --> shipping
  orderTopic --> notify
  orderTopic --> archiver
  accountTopic --> notify
  accountTopic --> archiver
  shipping --> seen
  seen -->|Yes| skip
  seen -->|No| shippingDb
  notify --> notifyDb
  archiver --> archive
  archive -. replay after a fix .-> orderTopic

Stock Mermaid vs Line9 on this event-driven architecture

Run the same source through the stock Mermaid engine and it often will not look as good. In some cases, Mermaid is able to deliver a usable graph, but not always. On this one:

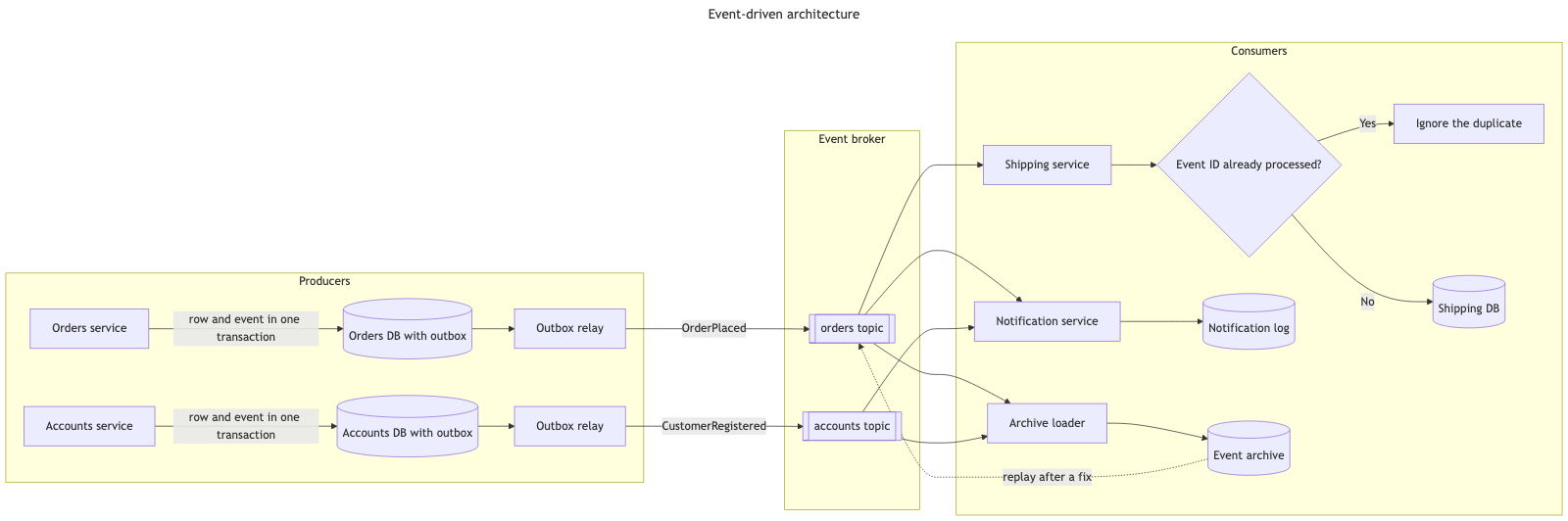

The same event-driven architecture through stock Mermaid — three grouped stages in a wide band, with crossing edges between broker and consumers — Stock Mermaid · same source View full size ↗

The two layouts are broadly similar here, with producers, broker and consumers as three stages from left to right. Because two of the consumers read from both topics, the edges from the topics inevitably cross on their way to the consumers, in both versions. The stock version is wider and its large decision node takes up extra room; Line9’s version is more compact.
