Mermaid diagram examples & templates
This collection of diagrams offers you a demonstration, a resource and an inspiration for your own work. Each diagram here 1) shows you an illustration of a realistic process described in a flowchart 2) gives you the starting Mermaid template to create your own version and 3) displays how the diagram is presented when rendered by Line9. Use these however you want — directly from our downloadable image, by editing in Line9 and re-publishing, or by taking it to a different Mermaid editor or viewer.
Also presented for each example diagram is the standard output diagram (using the same Mermaid source text) from the stock Mermaid engine. For a written comparison with the default renderer, read Line9 vs mermaid.live.
Identity and access
Engineering workflow

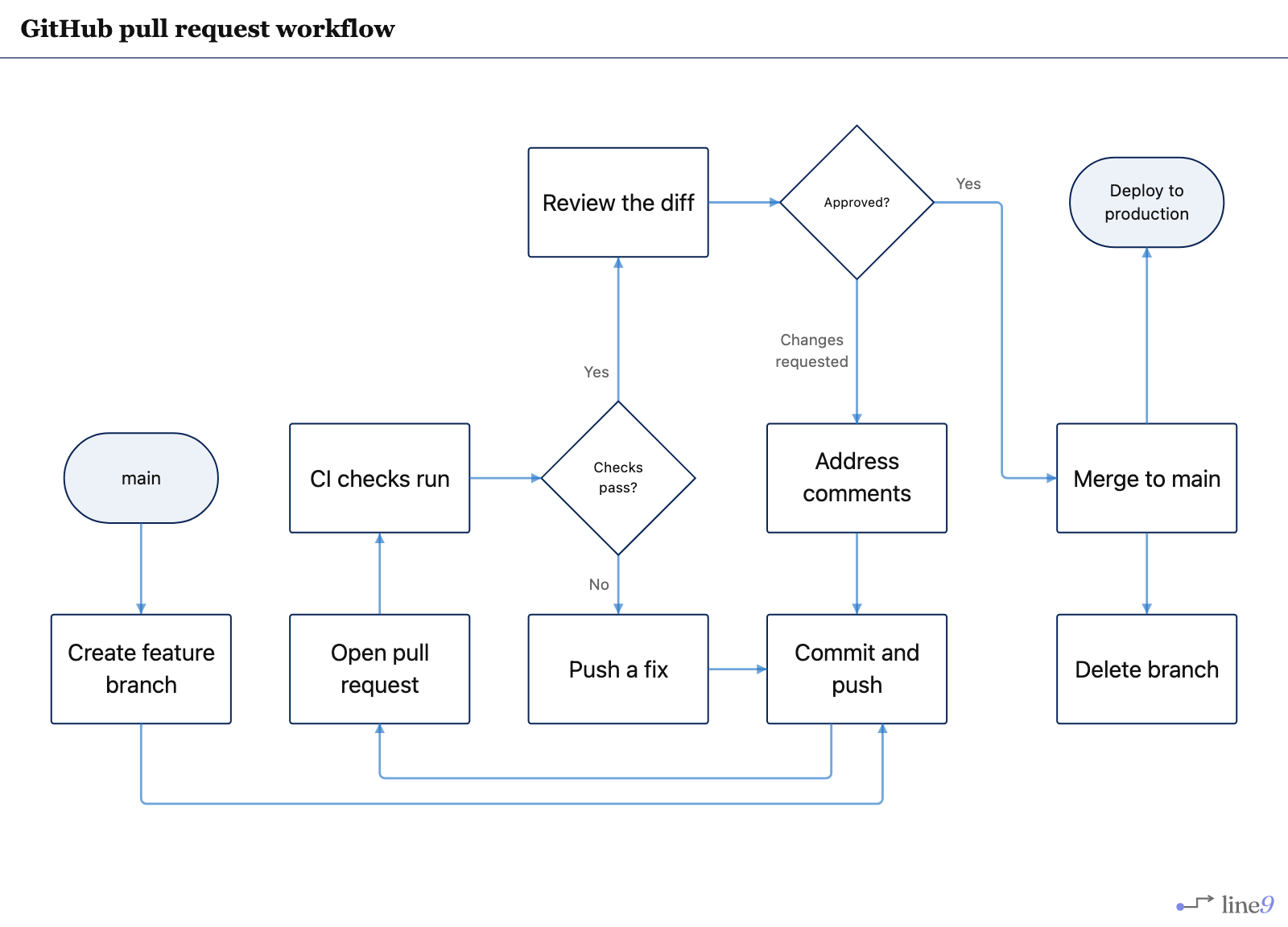

FlowchartPull request workflowBranch to merge, with the two rework loops that consume most of a pull request’s life.

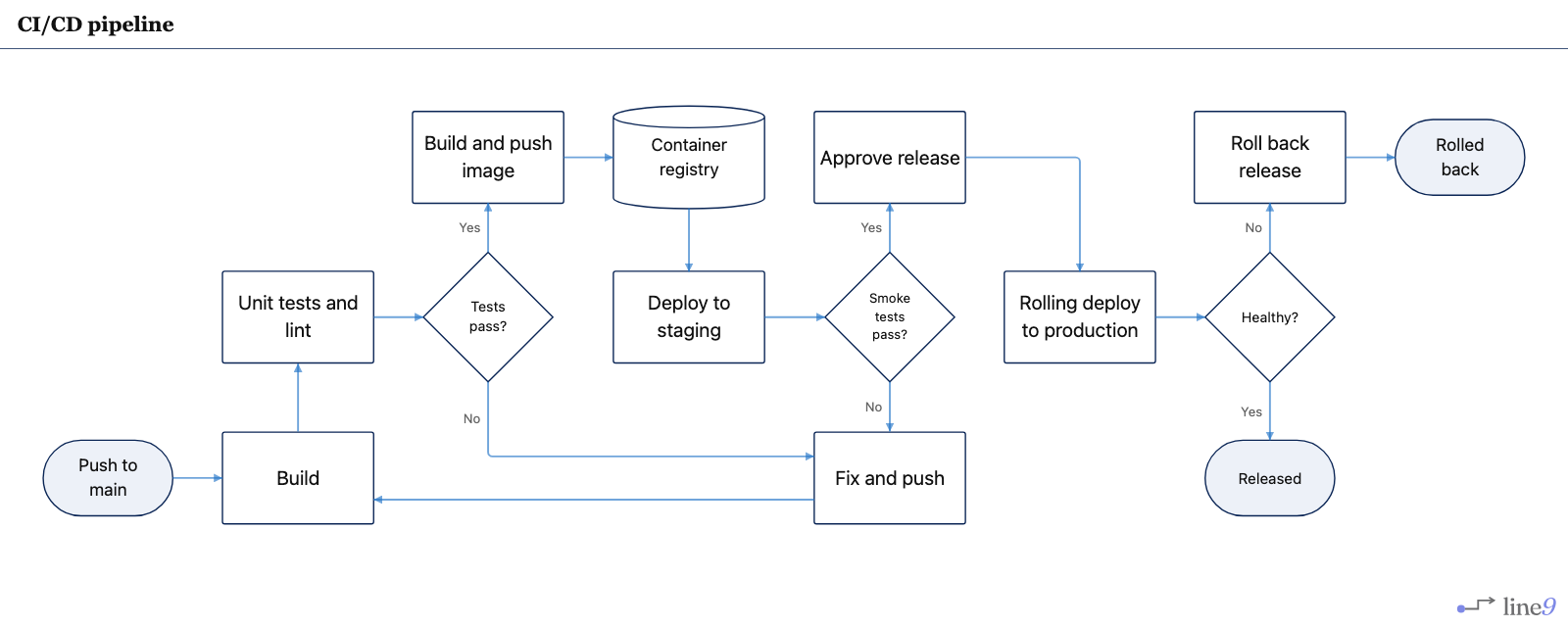

FlowchartCI/CD pipelinePush to production, including what happens when the rollout comes up unhealthy.
FlowchartAI coding agentPrompt, tools, tests and the loops that send the model back to work.
FlowchartIncident responsePage, ack, declare, mitigate or roll back, then write the postmortem.
FlowchartDatabase migrationExpand, dual-write, backfill, switch reads, then contract — with two rollback gates.
FlowchartFeature-flag canaryStaff, then 5 percent, then ramp — and one switch that turns the flag off.
FlowchartWebhook deliverySign, POST, retry with backoff, then dead-letter and replay — or stop on 4xx.
FlowchartDecision treeChoosing a data store, where several different questions lead to the same answer.
FlowchartPayment flowA card payment from checkout to payout, including refunds and chargebacks.
Business process

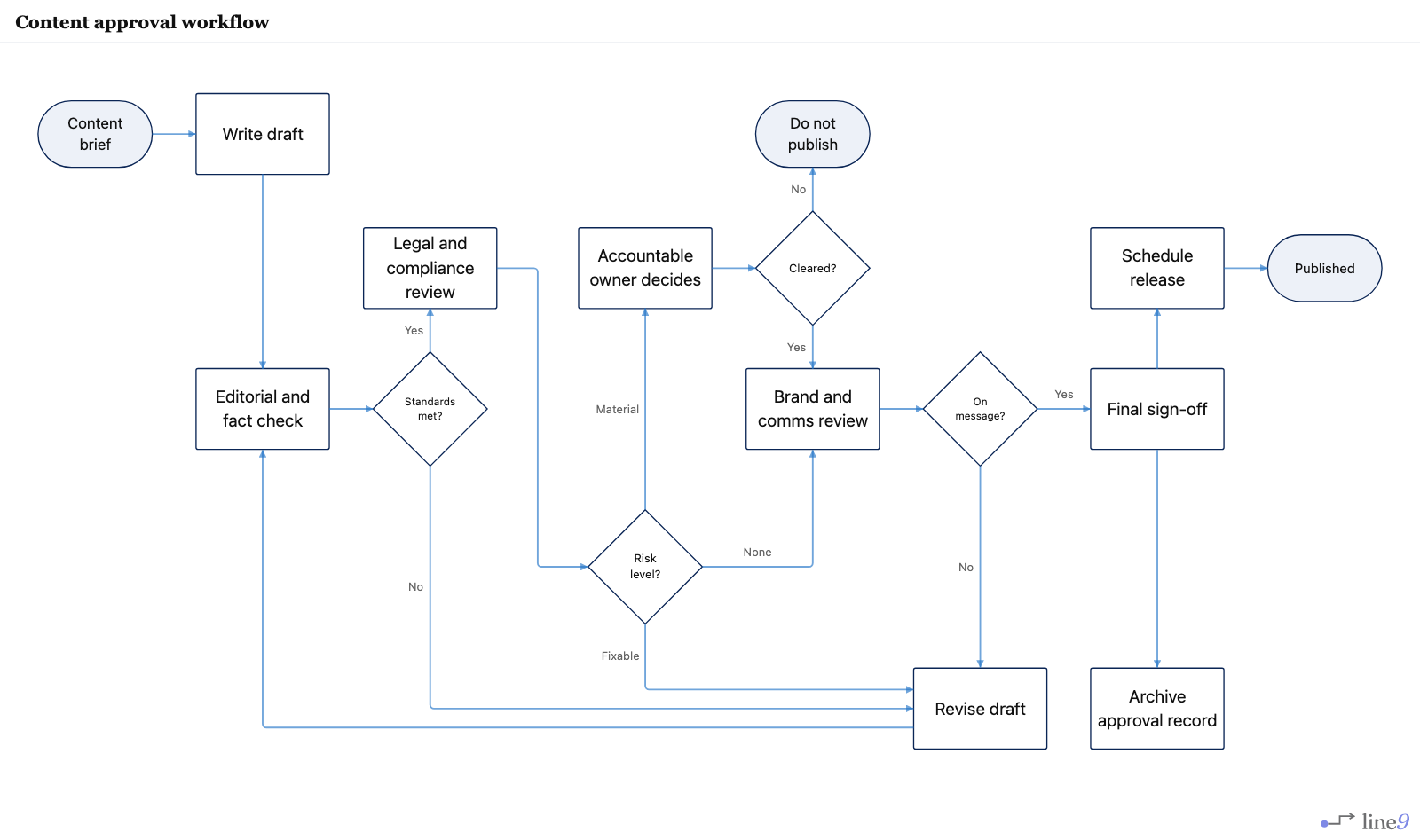

FlowchartContent approvalEditorial, legal and brand gates — including the path where a piece never ships at all.
FlowchartSupport ticketTriage, known-issue match, reproduce, then answer or fix — and a path back if it reopens.
FlowchartPeer reviewFrom submission to print, including desk reject, delayed reports, and both kinds of revision.
FlowchartProcure-to-payFrom purchase request to supplier payment, with the three-way match in between.
FlowchartRecruitmentFrom an approved vacancy to onboarding, with rejection possible at every stage.
Architecture

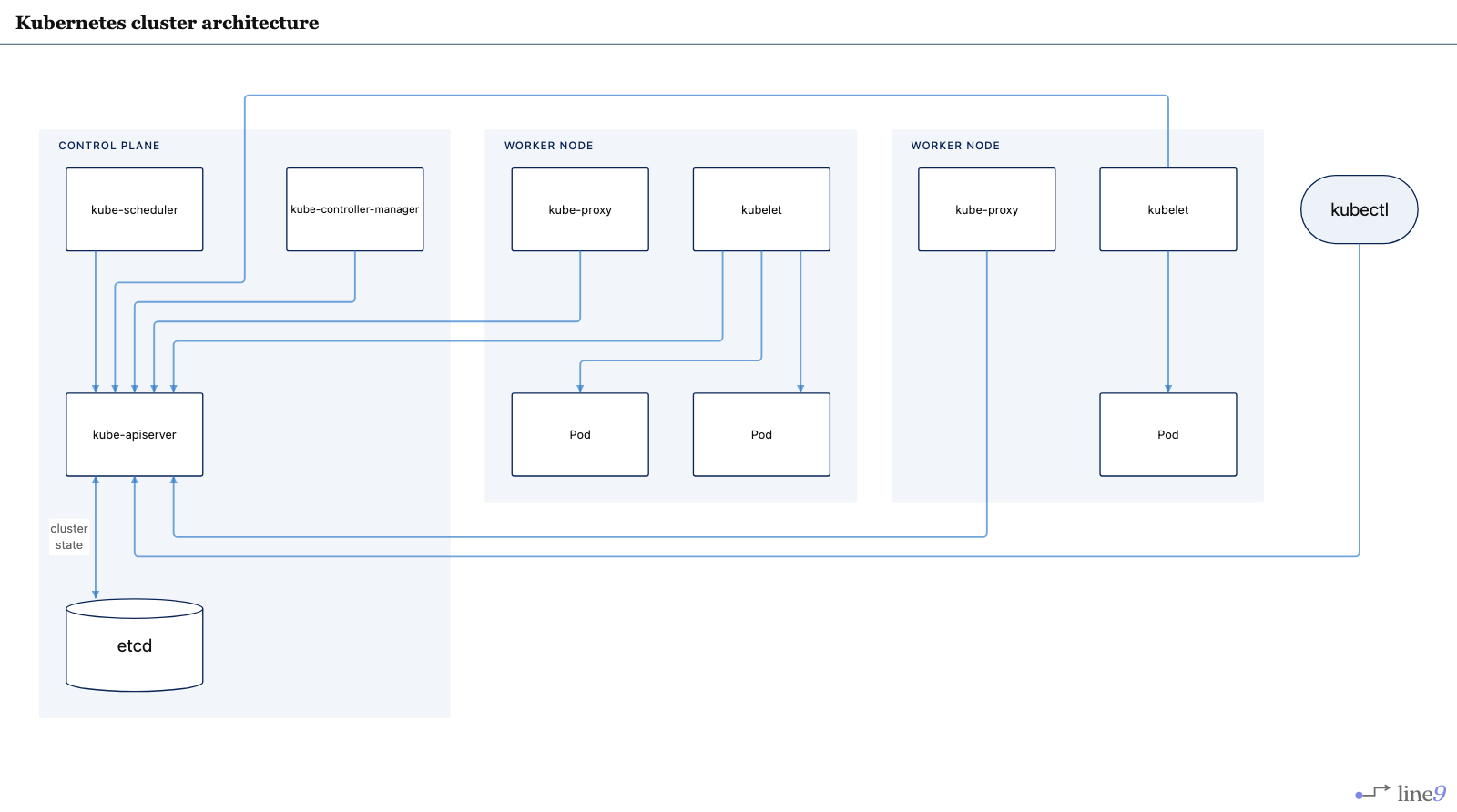

FlowchartKubernetes architectureControl plane, worker nodes and pods, wired through the one component that reaches etcd.
FlowchartE-commerce ordersStorefront to fulfilment, including fraud review, webhooks, and the dead-letter path.
FlowchartRAG architectureOffline ingestion and the online question path, meeting at the vector store.

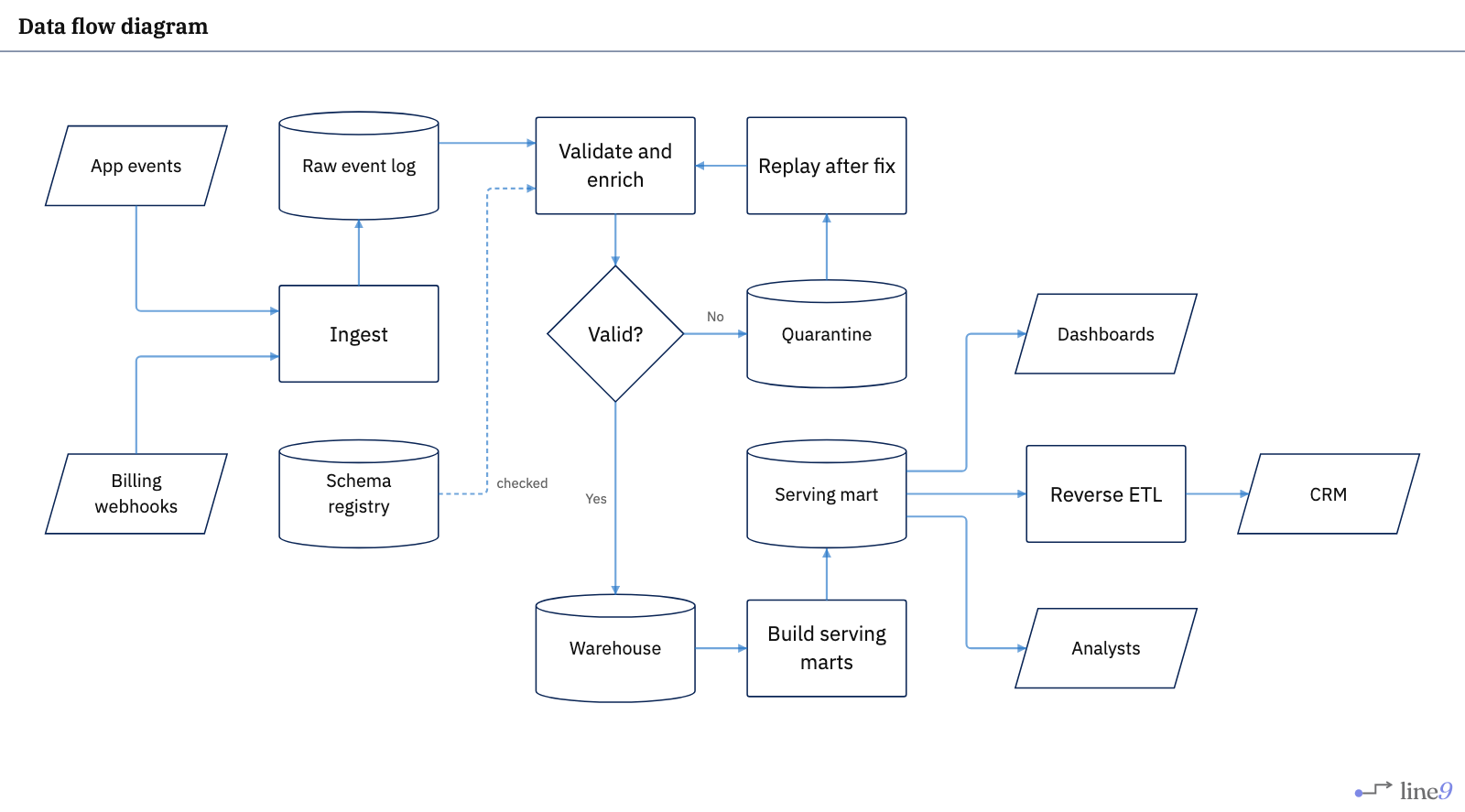

FlowchartData flowSources into stores and marts, with a quarantine loop for events that fail validation.
FlowchartNetwork topologyInternet to database through two firewalls, with office and remote access.
FlowchartSystem contextOne system in the middle, its users above and the services it relies on below.
FlowchartEvent-driven architectureProducers publish through an outbox; consumers read topics and skip duplicates.
Product and service design
Healthcare and research
Quality and manufacturing
Layout
When a flowchart will not sit still, the search is usually a layout problem — align, order, position, straight arrows. The first of those:

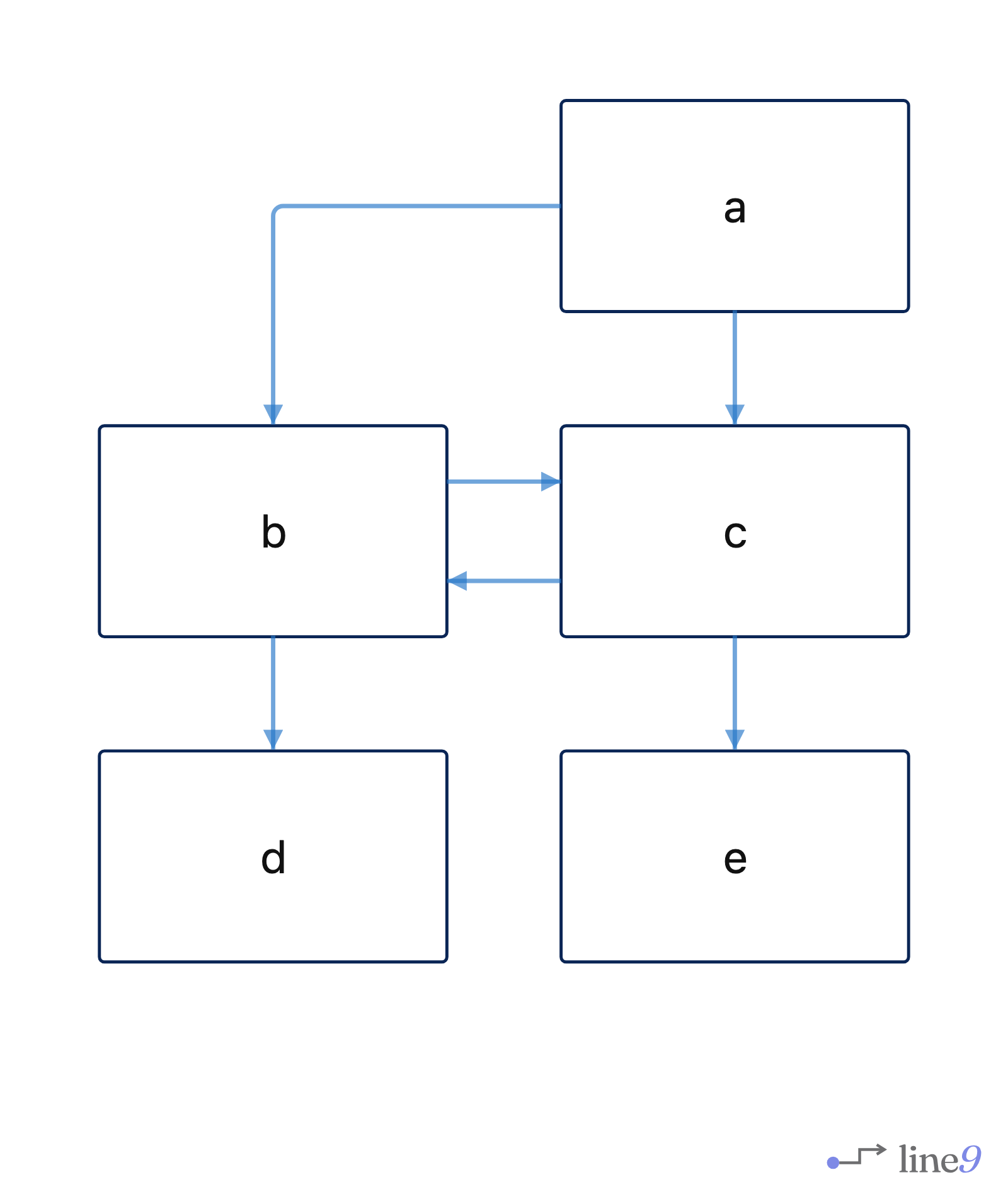

b and c on one row — a case stock Mermaid has not solved since 2016.
Try your own
Paste any Mermaid flowchart into the free online editor — no account required. Prefer the terminal? Install the line9 CLI (personal use free). For how Line9 differs from the stock online editor, read Line9 vs mermaid.live.
